FATIGUE
by Kelly
All images scanned by T. Schmierer
Visual example of axial stress
Visual example of torsional stress
Visual example of flexural stress

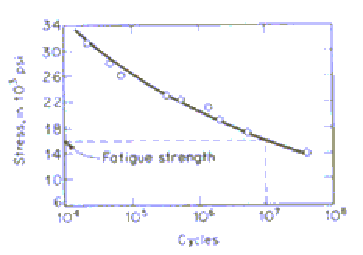

An S-N plot for an aluminum alloy
A diagram showing location of the three steps in a fatigue fracture under axial stress
A diagram showing the surface of a fatigue fracture.
The rough surface indicates brittle failure, while the smooth surface represents crack propagation

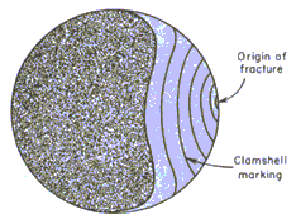

An example of beachmarks or "clamshell pattern" associated with stress cycles that vary in magnitude and time as in factory machinery
An example of the striations found in fatigue fracture.
Equation 1
Equation 2
Equation 3
Equation 4

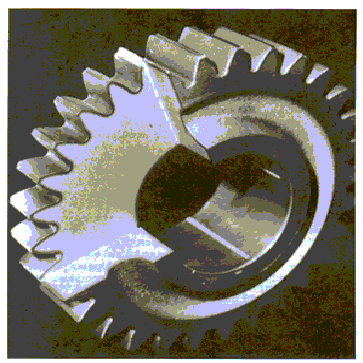

A case hardened steel gear
Example of pits formed by corrosion on the surface of LiF
STRESS INTENSITY
by Kim

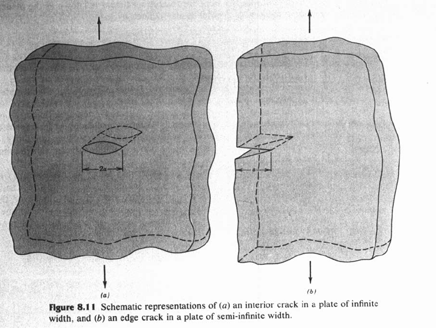

Schematic representations of
(a) an interior crack in a plate of infinite width, and
(b) an edge crack in a in a plate of semi-infinite width
Schematic representation showing the effect of plate thickness on fracture toughness
Basic modes of loading involving different crack surface displacements
Graph showing distribution of stresses in vicinity of crack tip
Picture of the Liberty Bell
STRESS CONCENTRATION
by Noble
All images scanned by T. Schmierer

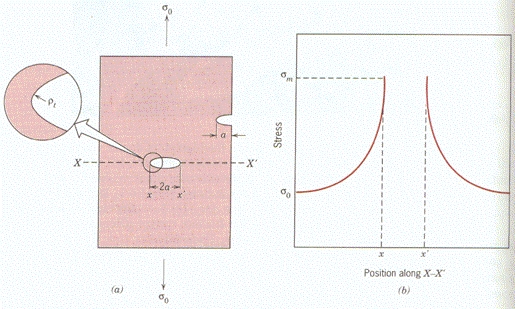

Diagram showing
(a)The geometry of surface and internal cracks.
(b) Schematic stress profile along the line X-X' in (a),
demonstrating stress amplification at crack tip positions
Equation 1
Equation 2

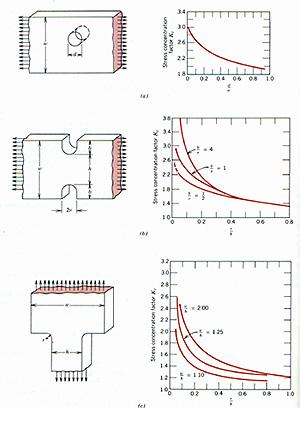

Diagrams showing stress concentration factor plots for three different macroscopic flaw situations
ENERGY METHODS
by Yue
All images scanned by M. Gallagher
Diagram of a plate with a crack growing with an applied stress
Fractograph of ductile cast iron showing a transgranular fracture surface
Fractograph of an intergranular fracture surface
Three modes of crack surface displacements
A cracked body with a force (F) and (a) is the crack length
A graph of the increase of growth rate with crack size
Illustration of Charpy and Izod Impact Tests
A graph of the temperature dependence on the Charpy V-notch impact energy
(curve A) and percent shear fracture (curve B)
NUMERICAL
THEORY
by Midkiff
All images scanned by J. Midkiff
Structure of a three-member truss
Single truss member
Equation 1
Equation 2
Force diagram of single truss member
Equation 3
Equation 4
Equation 5
Three member truss
diagram showing displacements and external forces
on a three member truss
Equation 6
Equation 7
Equation 8
Nodal forces on a three member truss
Equation 9
Equation 10
Equation 11
EXAMPLES
by Schultz
All images preprocessed in Patran and processed in
Abaqus by J. Schultz on an ESM workstation

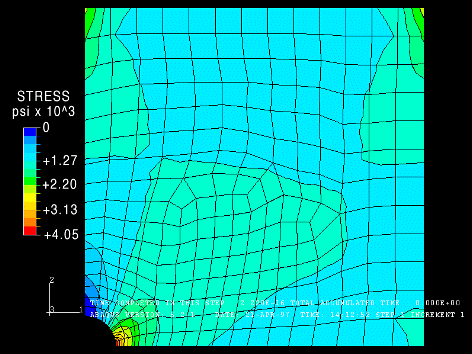

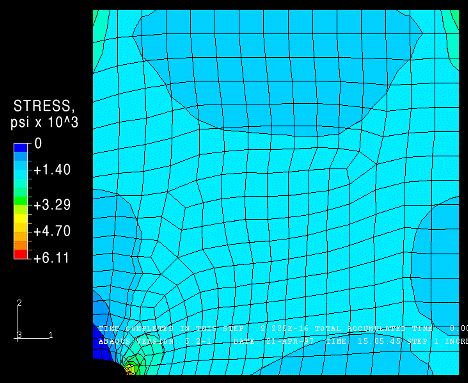

FEA results of stresses in a plate with an elliptical crack
FEA results of stresses in a plate with an elliptical crack

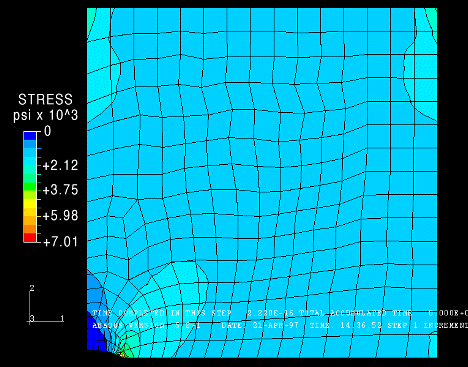

FEA results of stresses in a plate with a circular crack

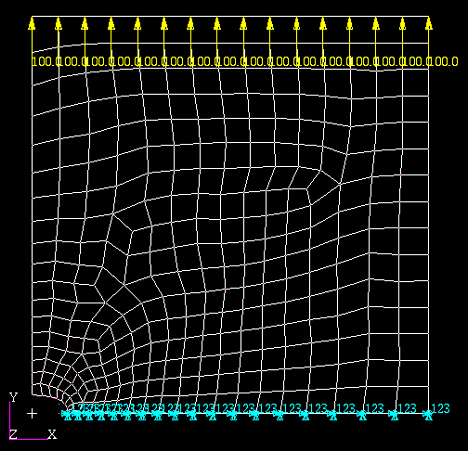

Mesh with boundary conditions for one of the models

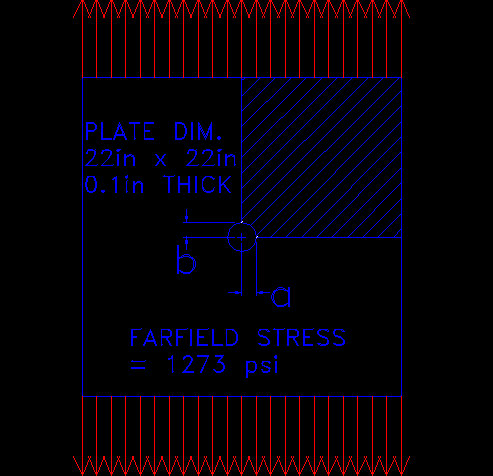

Geometry of FEA drawn in Autocad
SIMPLE COMPUTER PROBLEM
by Tingler
All images scanned by T. Schmierer
Equation 8.1
Equation 8.2
Equation 8.5 a,b,c
Equation 8.6
Equation 8.7
Equation 8.8
Equation 8.9
Equation 8.10
HISTORY/INTRODUCTION
by Widas
Figure 1 from http://www.noraneng.com
Mesh diagram of a van
Figure 3 from http://umass.edu/mie/labs/mda/fea/fealib/goldstein/PROJECT.html
Non-linear model of a bicycle frame
Fatigue analysis of a train
EXPERIMENTAL
by Bailey
All images scanned by T. Schmierer

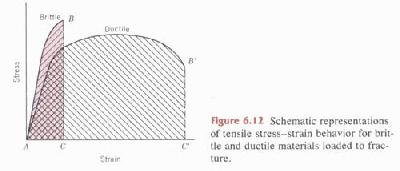

A tensile stess-strain curve

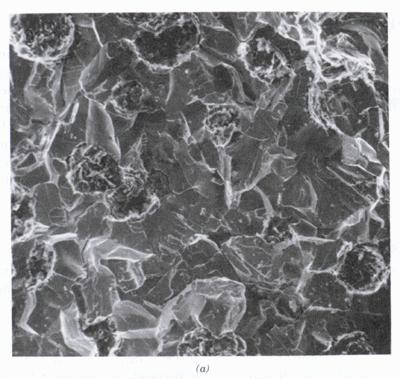

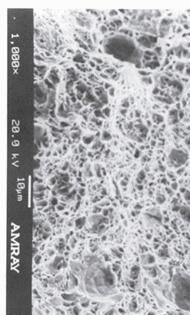

A scanning electron fractograph of ductile cast iron, examining a transgranular fracture surface

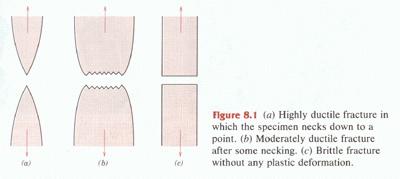

Figure showing the macroscopic differences between two ductile specimens(a,b)
and the brittle specimen (c)

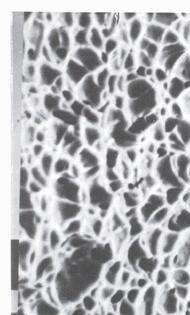

Figure demonstrating the microscopic qualities of ductile fracture surfaces
Figure demonstrating the microscopic qualities of ductile fracture surfaces
Sheared aluminium specimen showing cup and cone, and brittle fracture

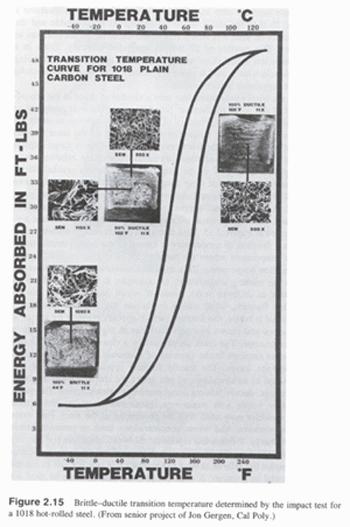

Graph that determines brittle to ductile transition
through an impact test for a 1018 hot-rolled steel
BRITTLE FRACTURE
by Ballard
Chevron fracture surface
Diagram showing intergranular fracture
Radiating ridge fracture surface
Diagram showing transgranular fracture
DESIGN
by Gordon
All images scanned by T. Schmierer
Graph showing aluminum oxide's modulus of elasticity as a function of porosity
Graph showingaluminum oxide's modulus of rupture as a function of porosity
Diagram of a ceramic material before sintering
Diagram of a ceramic material during sintering
Diagram of a ceramic material after sintering
Equation showing the minimum fiber length for a continuous fiber composite
Equation showing the tensile strength of a discontinous
fiber composite with fiber length greater than lc
Equation showing the tensile strength of a discontinous
fiber composite with fiber length less than lc

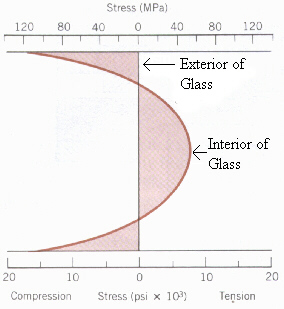

Figure showing the tenile and compressive stress on tempered glass
Equation for factor of safety
A poor design that will create a stree concentration
A good design that will minimise stress concentration
Equation for the minimum thickness of material before plane strain behavior occurs
Equation for the fracture toughness of a material with a thickness less than B
Equation for the fracture toughness of a material with a thickness equal to or greater than B;
when it fractures in mode I
Equation for the critical applied stress required to cause failure in a material
Equation for the critical crack length required to cause failure in a material
Diagram of a mode I fracture
Diagram of a mode II fracture
Diagram of a mode III fracture
Graph showing composite performance in relation to stress alignment
FRACTOGRAPHY
by Halahan and Mutter
Stainless steel showing transgranular cleavage
Scanned by M. Gallagher
TiB2 showing cleavage
Scanned by M. Gallager
Ni base alloy showing cleavage
Scanned by M. Gallagher
Silicon carbide showing small cleavage
Scanned by M. Gallagher
Obvious decohesion
Scanned by R. Halahan
Stainless steel showing hydrogen embrittlement
Scanned by R. Halahan
Stainless steel showing decohesive rupture
Scanned by M. Gallagher
Carbon-Magnesium steel showing stress corrosion cracking
Scanned by M. Gallagher
Low carbon steel with a layer of oxide
Scanned by R. Halahan
Low carbon steel with a layer of oxide
Scanned by R. Halahan
Nickel based alloy with fatigue striations
Scanned by M. Gallagher
Enlarged picture of fatig1.jpg
Scanned by M. Gallagher
Nickel based alloy with jagged fatigue striations
Scanned by M. Gallagher
Titanium alloy with fatigue striations
Scanned by M. Gallagher
High carbon steel with an elongated dimple
Scanned by M. Gallagher
AISI 10B21 Steel with well defined microvoid coalescence
Scanned by M. Gallagher
Aluminum alloy with microvoids
Scanned by M. Gallagher
Titanium alloy with equiaxed and elongated dimples
Scanned by M. Gallagher
Nitralloy 135 M with microvoid coalescence
Scanned by M. Gallagher
FRACTURE TOUGHNESS
by McMurtry
A specimen with an internal crack
A specimen with a through-thickness crack
A specimen with a half circle surface crack
A fracture toughness vs. thickness graph
Three modes of crack surface displacement
Two ASTM standard compact specimen of different b sizes
Graph of fracture toughness vs. temperature for different steels
A graph of fracture toughness vs. temperature for various strain rates
applied to A572 steel
EXPERIMENTAL FATIGUE
by Meyer
All images scanned by C. Meyer
Fracture appearances of fatigue failures in bending
Typical fatigue zone with identifying marks
Graph showing the effect of hardness on the fatigue life
of threads rolled before and after heat treatment
Graph of bending fatigue test results on sections from crankshafts:
endurance limit versus surface treatment
Typical fatigue life curve
Bending angle guide
Graph of experimental data: angle vs. cycles to failure
Graph of crack growth rates obtained from adjacent pairs of a vs. N data points
figure showing completely reversed controlled strain test and
two possible stress responses, namely cycle-dependent
hardening and softening
Diagram of a stable stress-strain hysteresis loop
Elastic, plastic, and total strain vs. Life curves
A tension fatigue failure of a helicopter rotor blade flapping link
MOVIES
by Luszcz and Mix
cyclic.mpg and cyclic2.mpg
Fracture of a Hercules Graphite fiber/vinyl ester matrix composite resulting from a completely reversed load
controlled fatigue test
(performed by Nikhil Verghese - Tech graduate student)
brittle.mpg
shows brittle fracture of a class 20 gray iron sample
resulting from a constant strain tensile test (performed by J. Luszcz and J. Mix)
ductile.mpg
shows ductile fracture of a 4 wt% Cu in Al sample resulting
from a constant strain tensile test (performed by J. Luszcz and J. Mix)

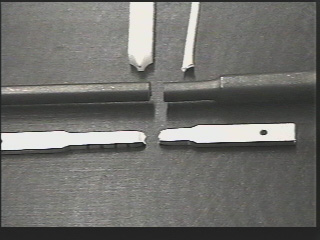

shows resulting fractures of gray iron (brittle fracture,
round specimen), 4 wt% Cu in Al (ductile fracture, flat specimen), and
polyethylene (extremely ductile fracture, white specimen) (taken by J. Luszcz and J. Mix)
