Results

The available data is obtained from the Wave Propagation in Solids course.

The results are divided in planar, 3D constant radius and 3D 3-Axis views. The results are presented for 0, 15, 30 and 45 phi values for Aluminum, and for a 45 phi value for Benzene.

Planar View

Planar View of Aluminum, phi = 0 degrees.

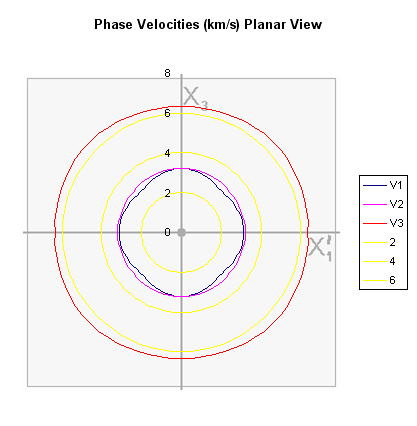

Planar View of Aluminum, phi = 15 degrees.

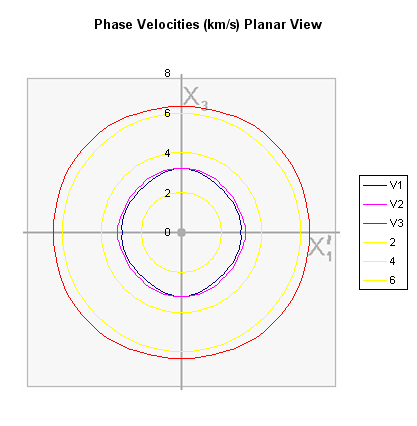

Planar View of Aluminum, phi = 30 degrees.

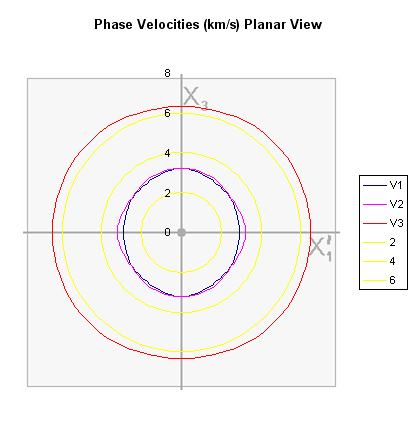

Planar View of Aluminum, phi = 45 degrees.

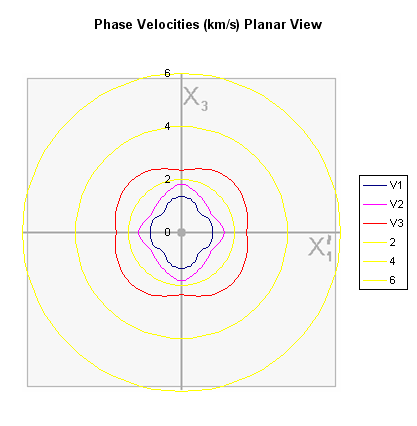

Planar View of Benzene, phi = 45 degrees.

3D Constant Radius View

Constant Radius View of Aluminum, phi = 0 degrees.

Constant Radius View of Aluminum, phi = 15 degrees.

Constant Radius View of Aluminum, phi = 30 degrees.

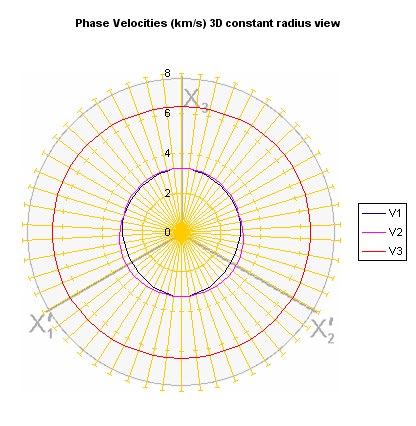

Constant Radius View of Aluminum, phi = 45 degrees.

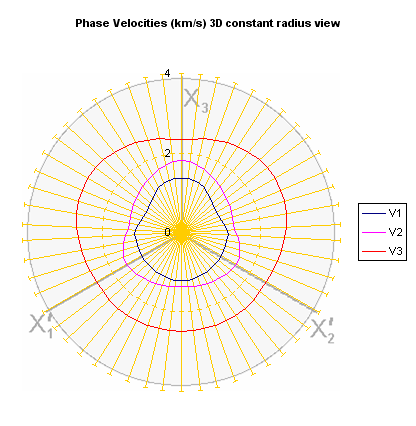

Constant Radius View of Benzene, phi = 45 degrees.

3D 3-Axis View

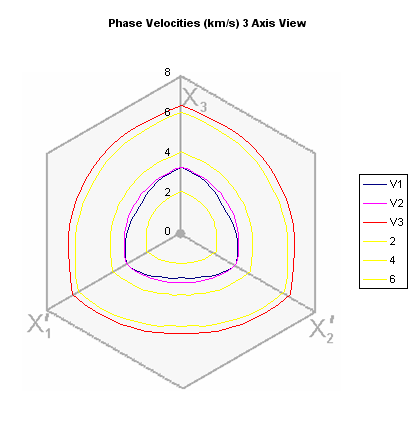

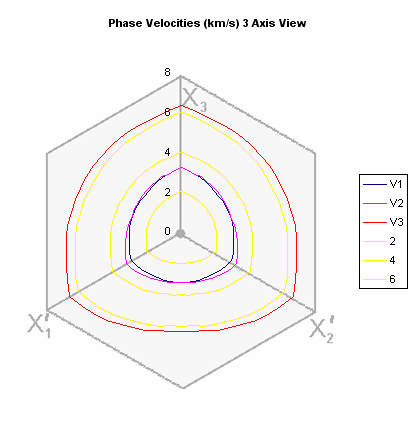

3-Axis View of Aluminum, phi = 0 degrees.

3-Axis View of Aluminum, phi = 15 degrees.

3-Axis View of Aluminum, phi = 30 degrees.

3-Axis View of Aluminum, phi = 45 degrees.

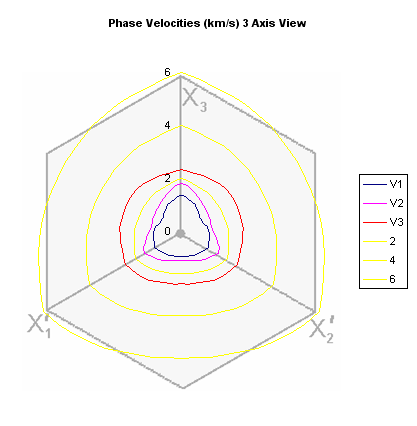

3-Axis View of Benzene, phi = 45 degrees.

.
