CASE II Stress in a plate with a hole

For this case, the grid must match in the edges. The edges are defined as arcs. Some changes in the values are done to see how the mesh is altered.

The grid

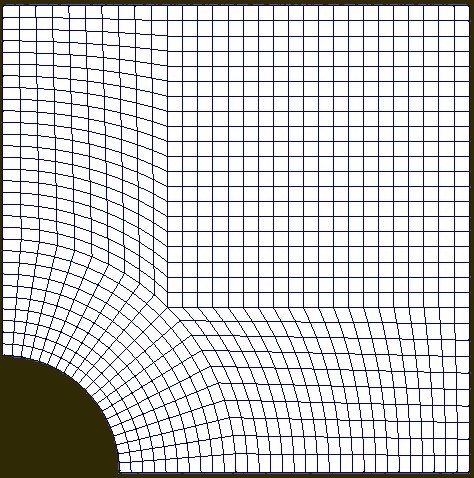

Original generated grid

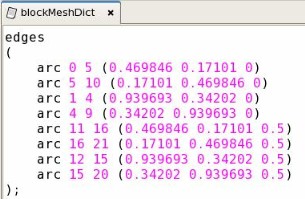

Initial values for undeformed semicircular shape

Values for a deformed semicircular shape

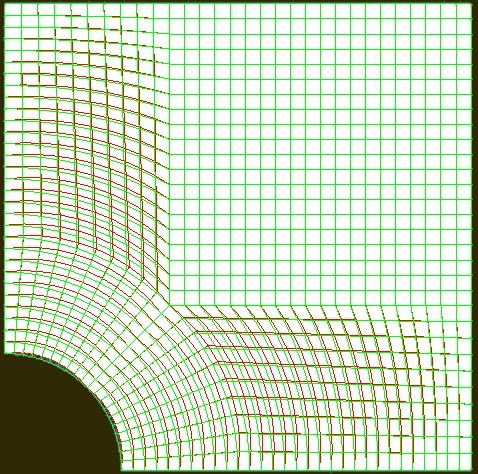

Original grid in green and modified in red

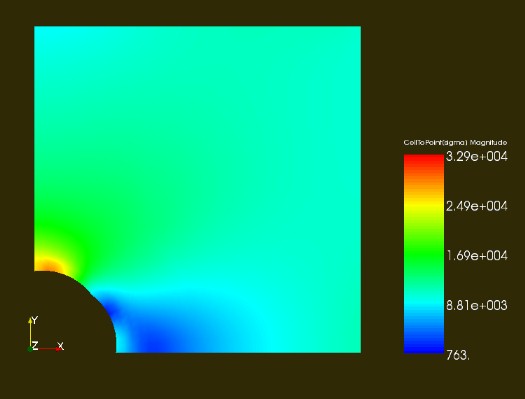

Original sigma

Sigma for the deformed mesh

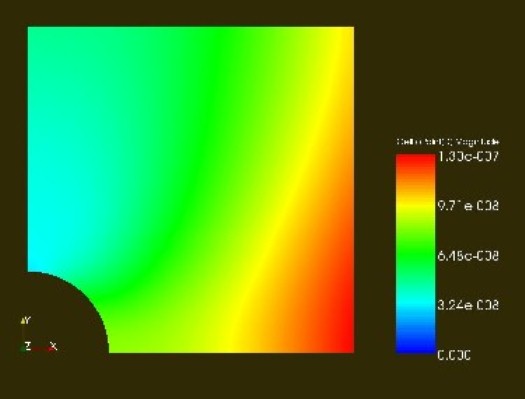

Original D magnitude

D magnitude for the deformed mesh
