Instructions for using this form:

1. Enter appropriate numbers in the boxes,
2. enter your email address,
3. click on submit, and
4. wait for results to be returned to your email. (this will take about 4 hours 30 minutes)


Simulation results returned:

1. You can either select web links in the email or view the results directly by going to the
   directory http://www.jwave.vt.edu/output/wave2d_Cij_45x180_ "unique date-time"/.
   If your email does not provide direct web links, copy and paste the web address from
   the email into your web browser location window.

2. All results are organized in one file:
   http://www.jwave.vt.edu/output/wave2d_Cij_45x180_"unique date-time" /results.html
   If the form is submitted "as-is" you can view the simulation results as an animation.

3. You should check the files wave2d_45x180.out to verify that the job ran correctly.

4. You can also download files from your web browser to your computer for archiving.
   NOTE: ALL FILES WILL BE DELETED AFTER 3 DAYS.

Below are images with back-ground-info that describes this problem in more detail.

TERMS DEFINED
==============================================================

ANIMATION: ( MPEG(768K) )

How to Visually Interpret Results
==============================================================

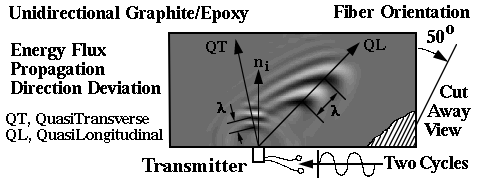

BULK WAVE PROPAGATION SIMULATION IN UNIDIRECTIONAL Gr/Ep
----------------------------------------------------------------------------------------------------------------
Unlike isotropic materials waves propating in anisortropic materials deviate from
the wave normal n_i. This anisotropy quides the wave energy propagation shown in
the animations provided above. From this simulation new relationships can be
seen: 1) the faster moving QL wave has a longer wavelength, 2) diffractions
from reflected bulk waves create Rayleigh surface waves, 3) the reflected QL
wave energy propagates back towards the origin, 4) this refection does not
generate another bifrucation of energy into yet another QL & QT wave. This
information suggests that waves could be launched preferentially.

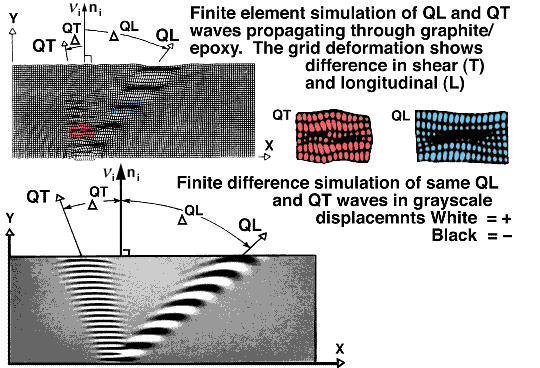

Because a deformed mesh shows shows the wave types, L, QL, QT, or T,
more clearly, highlighted above as red and blue regions, the animation
of simulation results are shown as a deformed mesh.

Below is specific information that describes how to use data in the form shown in the lower frame.

  __________________________________________________________________________

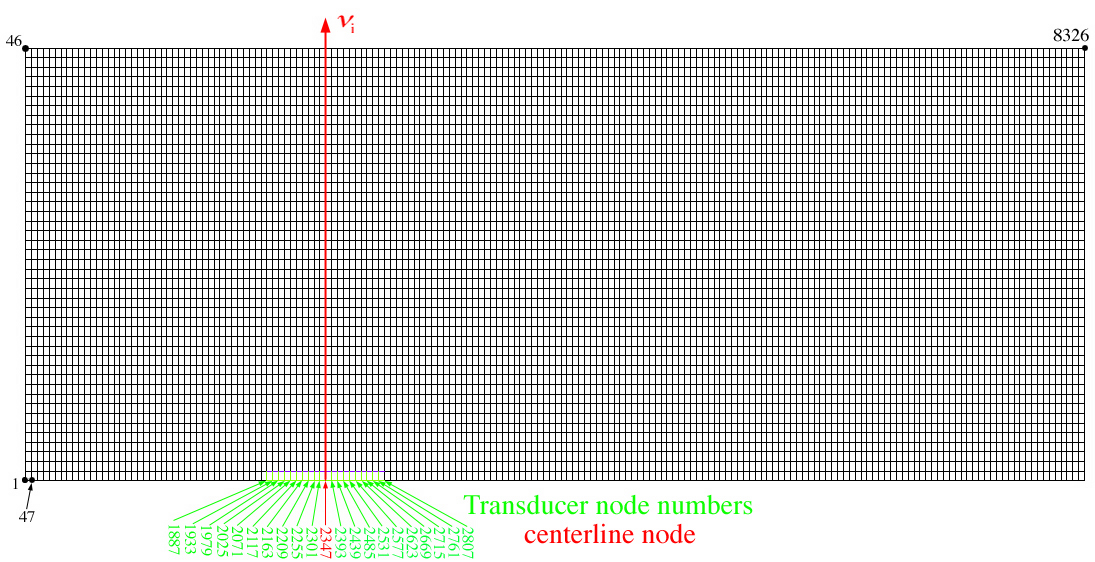

  Simulated transducer defined by identifying grid nodes and vibration direction angles:

========================================================================= View larger format
