Show all three polar plots

Elastic Anisotropy - Hexagonal - Polar Plots: JWave

Elastic properties of fiber, matrix, and their composities.
Interactive JWave interface computes and plots elastic
engineering properties for a unidirectional composite
at various fiber volume fractions

Look at files in interactive polar-plot JWave directory "module01"

Problem Statement

Click on image to start an interactive JWave session

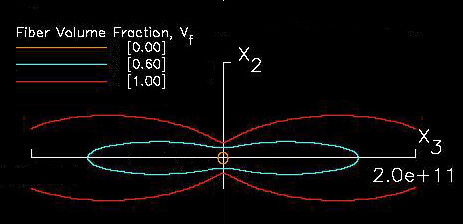

Figure 12. Polar diagram of grahite/epoxy Young's modulus E₃ for various fiber volume fractions, in GPa.

Click on image to start an interactive JWave session

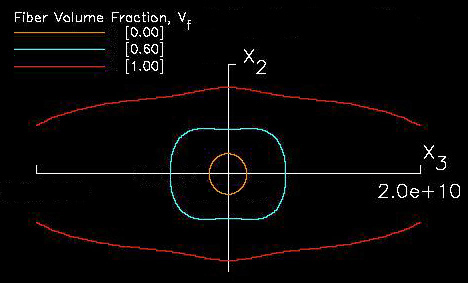

Figure 13. Polar diagram of grahite/epoxy shear modulus G₂₃ for various fiber volume fractions, in GPa.

lick on image to start an interactive JWave session

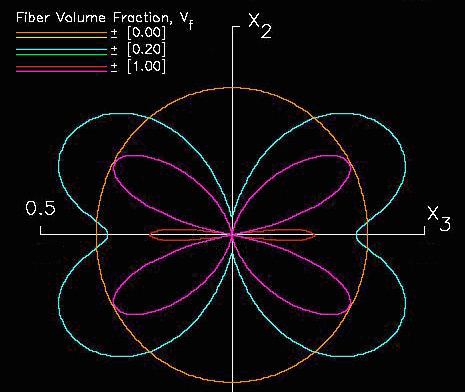

Figure 14. Polar diagram of grahite/epoxy Poisson's modulus n ₃₂ for various fiber volume fractions, in GPa.
NOTE: yellow, green, and purple line indicates negative Poisson's ratio.

Course content in this section: email Dr. Ron Kriz
